Key Features & Technical Overview

• 3-Wire Digital Bus System: Simple, reliable plug-and-play hookup using standard GND, +12V, and Data lines for total synchronization with your TFC Drive Switch unit.
• Screen-Accurate Aesthetics: Faithfully crafted following original movie prop specs, including A-Car detail variations and authentic vintage labeling.

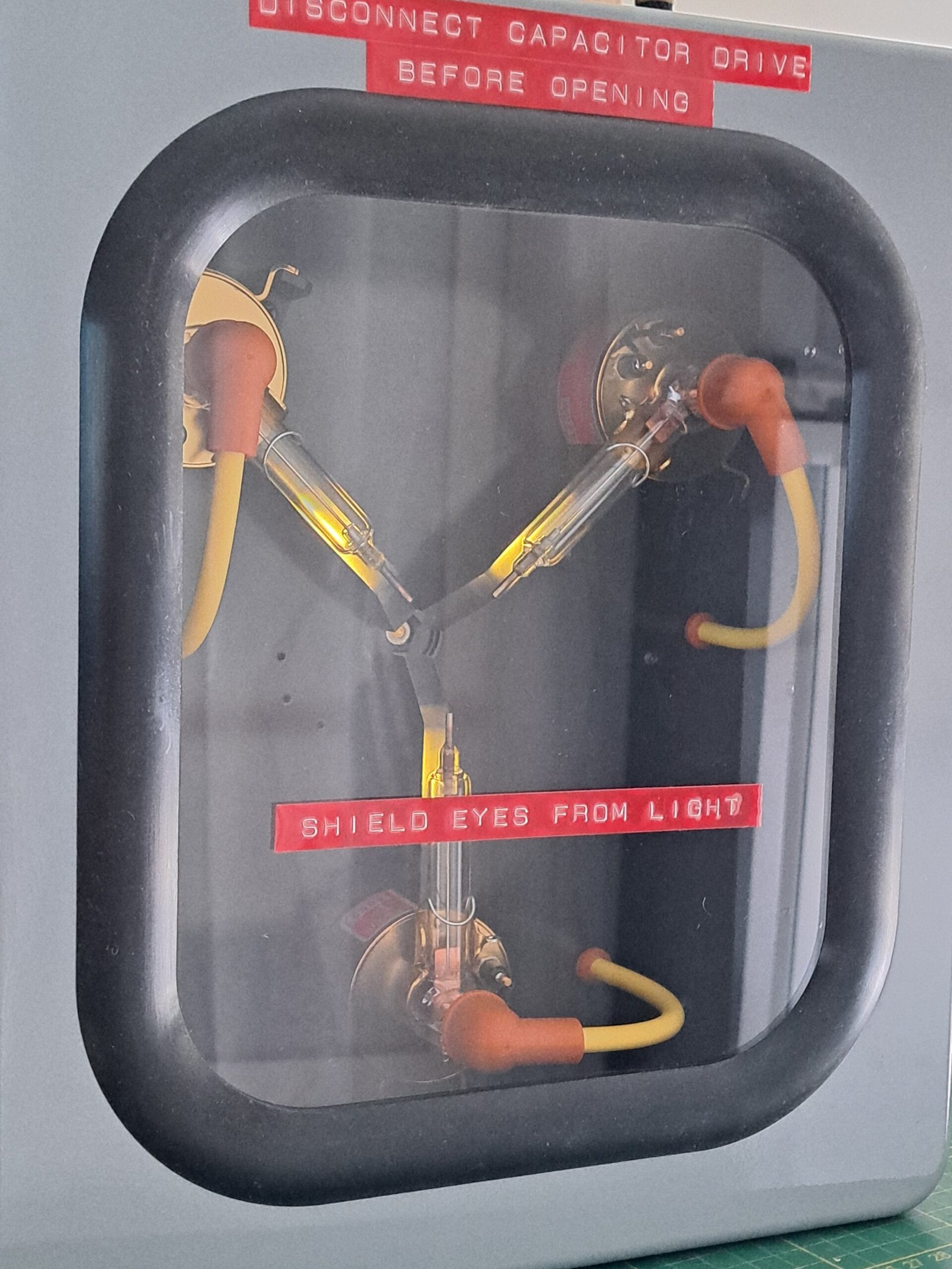

• Dynamic Time Travel Effects: Features integrated electronics driving 3-stage chaser lights, central spotlight, sound outputs, and dual hidden enclosure LEDs.

Detailed Component Breakdown

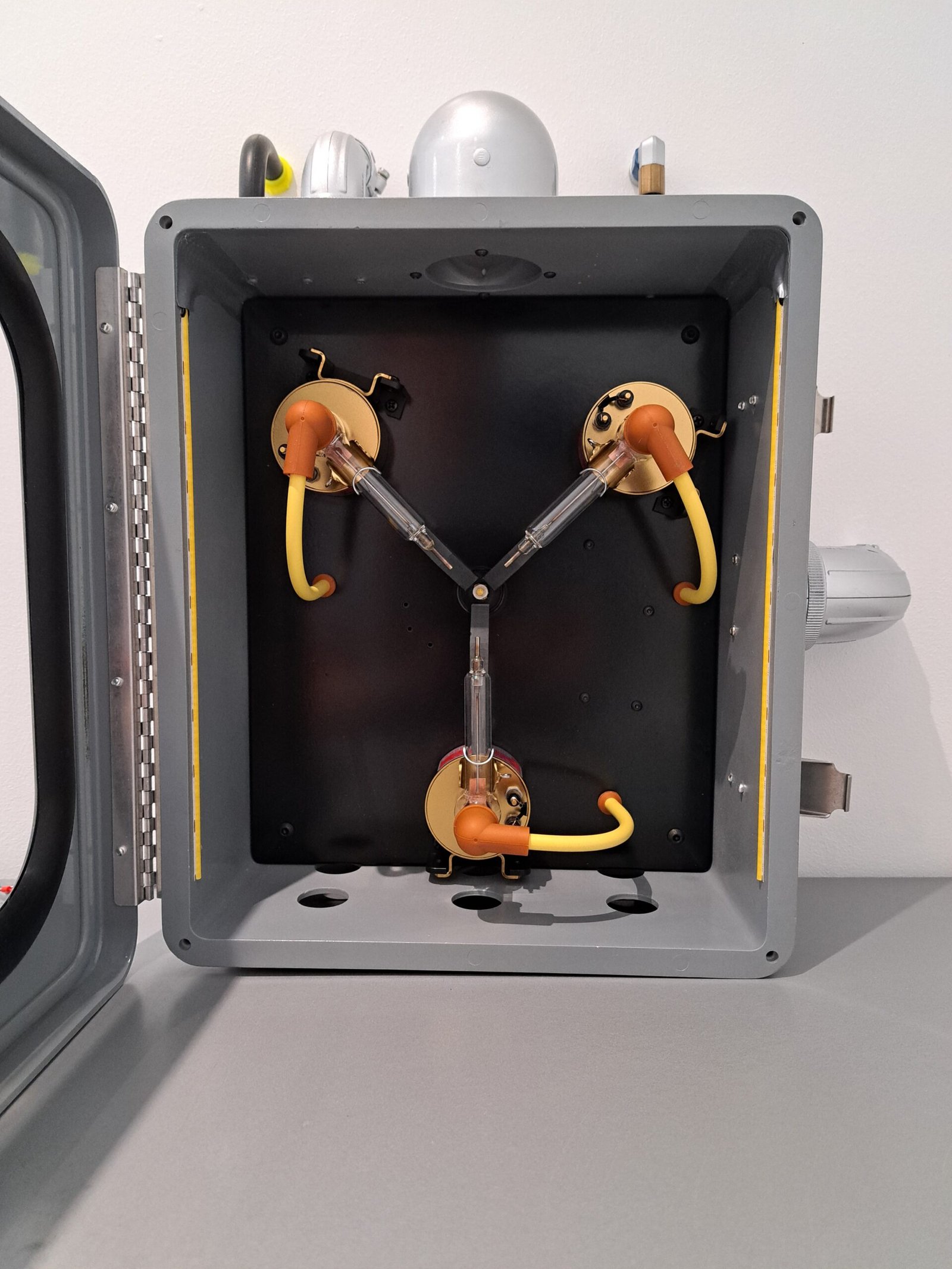

1. Black Anodized Aluminum Backplate Assembly

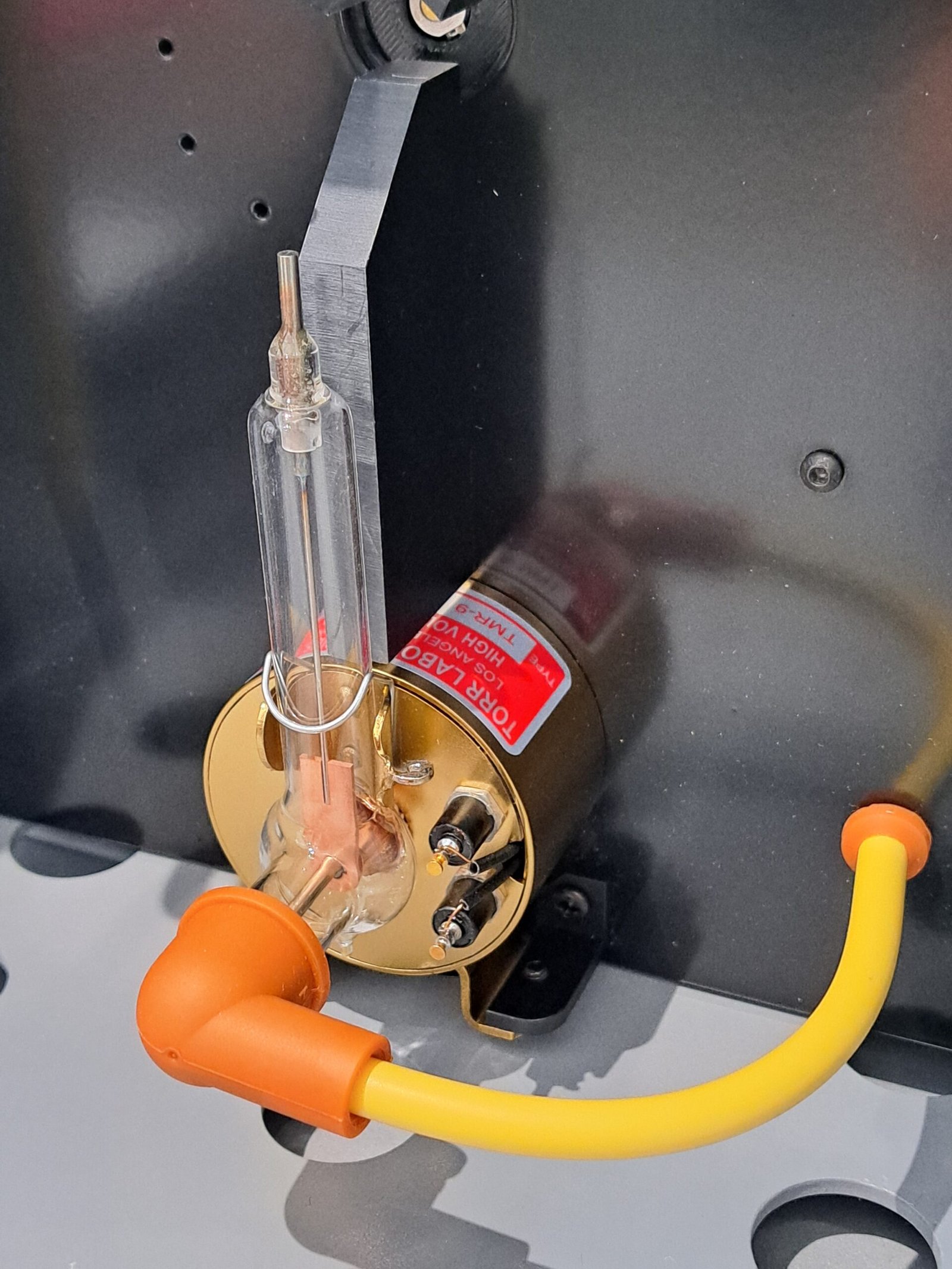

• TORR High-Voltage Relays: 3 replica relays constructed with glass tubes containing internal metallic components identical to the original prop. Mounted on yellow zinc-plated steel bases with 4-point spot-welded brackets and 2 steel rivets.
• NOS Litton Terminals & Clips: Equipped with genuine New Old Stock (NOS) Litton terminals and high-elasticity zinc-plated steel spring clips ensuring zero deformation over time.
• Custom Mounting Brackets: Black anodized aluminum L-brackets precisely secure each relay to the main backplate.
• High-Voltage Cabling: Features snug-fit orange spark plug caps connected to yellow high-voltage wiring with matching orange grommets.
• Acrylic Light Blocks: 2 side-painted black, light-diffusing acrylic blocks double-bolted to the backplate for robust, wobble-free installation.
• Integrated Electronics PCB: Custom rear-mounted mainboard powering all 3 light chasers, audio synchronization, central spotlight, and auxiliary lights.

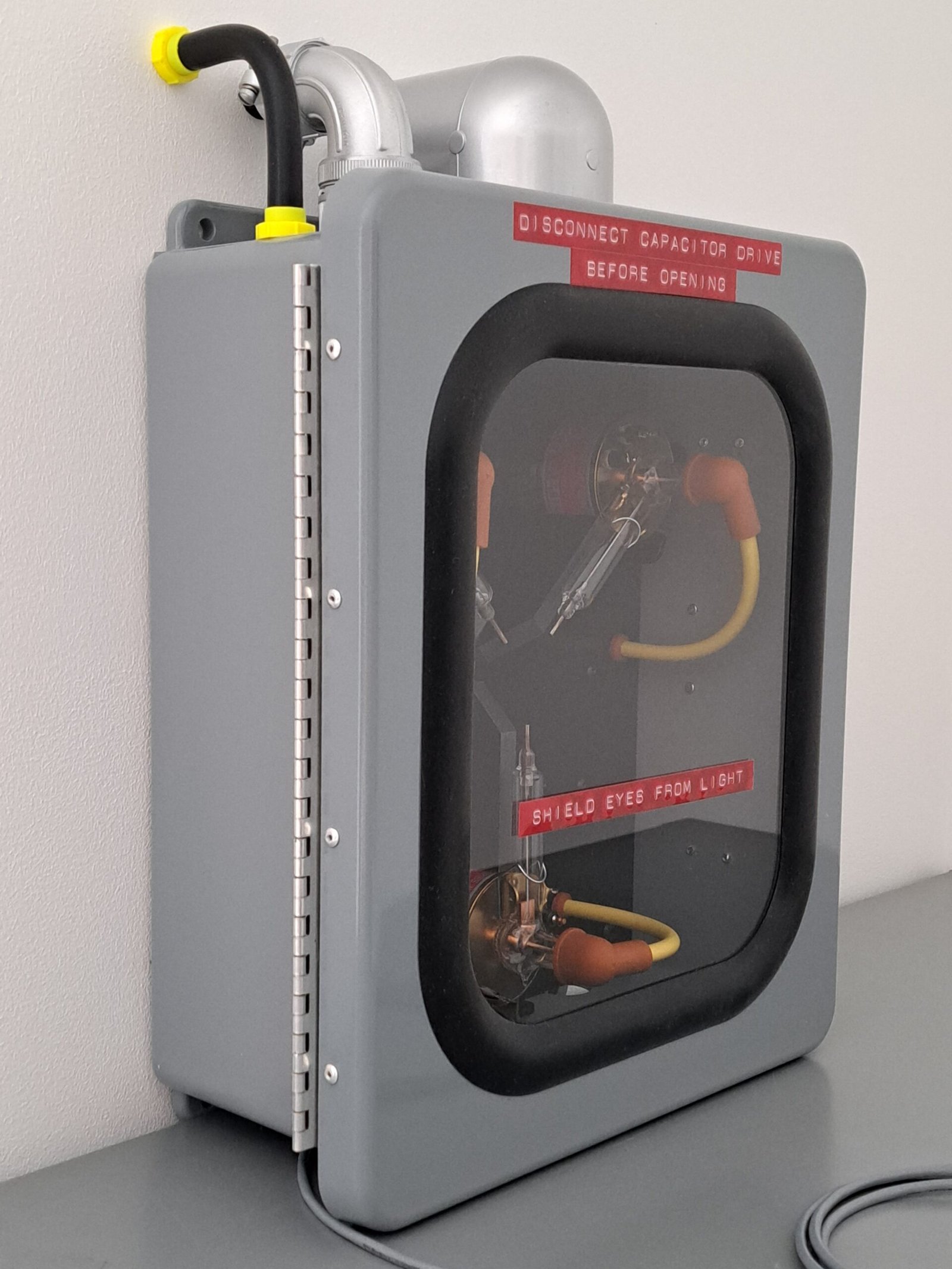

2. Modified Stahlin J1210 Enclosure

• Custom Machining & Finish: Authentic dark gray paint finish with precision CNC cutouts.
• Movie-Accurate Modifications: Includes angled hinge and relocated latches matching the original version of the enclosure.
• Window & Sealing: Custom acrylic window with a custom-made sealing gasket.

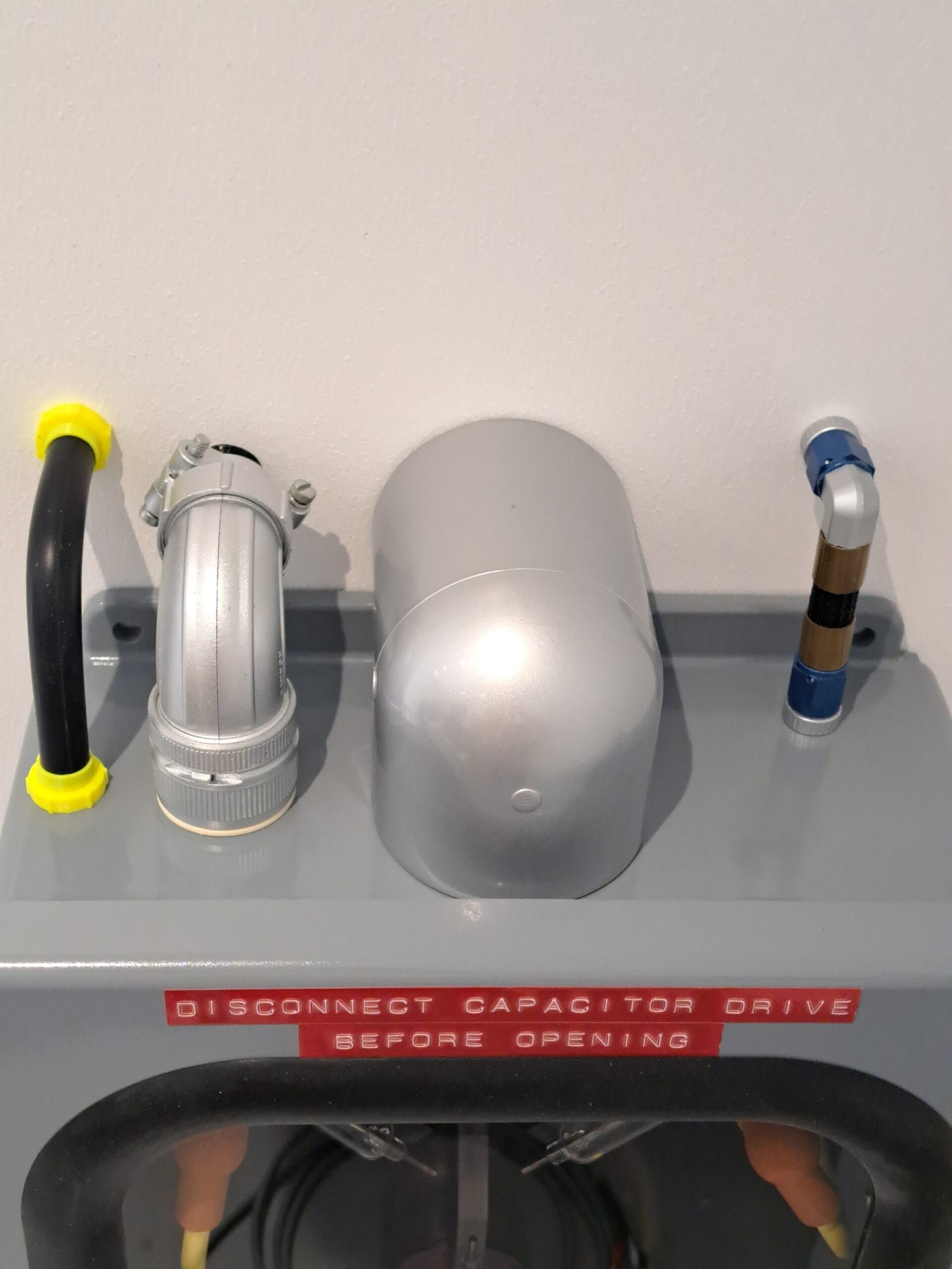

3. Screen-Accurate Elbows & Top Details (A-Car Spec)

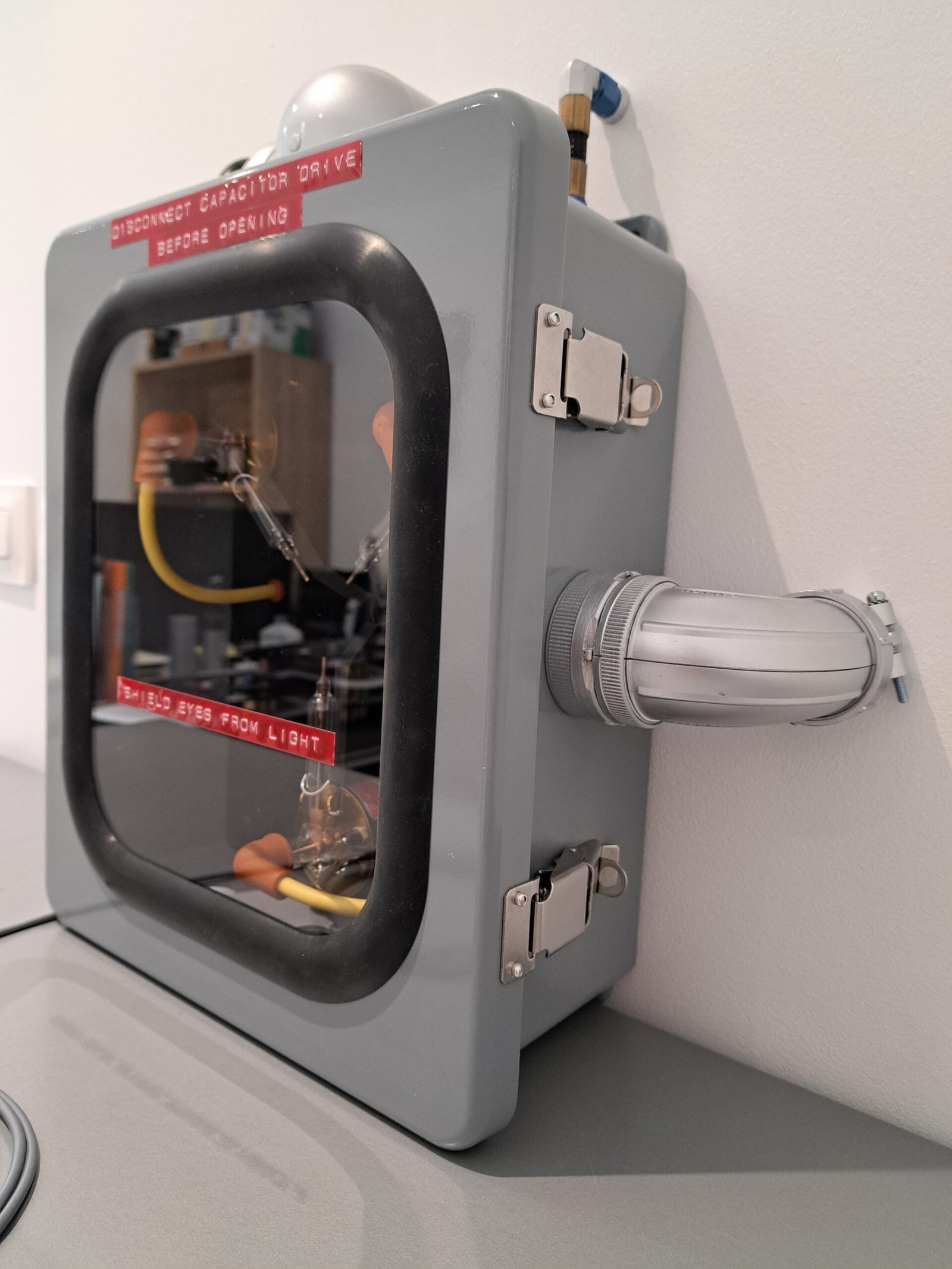

• Cannon Elbows: Size 32 Cannon elbow connector replica on the right side; Size 20 Cannon elbow connector replica on the top left.
• Other Elbows & Hoses: Lasco elbow replica (top center), angled hose with yellow end-fittings (far left), and a fully detailed high-pressure hose replica (right).

4. Lighting, Labels & Wiring

• LED Strips: Dual side LED strips hidden behind the lid gasket illuminate the entire enclosure interior during 88 MPH time sequences.
• Vintage Red Labels: Labels created using the exact vintage label maker model used on the original 1985 film prop.
• Wiring Harness: Includes a 3-wire cable terminated with clean wire ferrules for direct connection to your TFC Drive Switch.

Package Contents & Compatibility
